Ceiling-mounted PIR occupancy sensor with 360° detection coverage.
Supports AC 110–240V, adjustable delay and lux setting for energy-saving commercial lighting projects.
360° ceiling-mounted PIR motion detection
Detection range up to 6 meters
Adjustable time delay from 10 seconds to 15 minutes
Ambient light (LUX) sensitivity adjustment
Supports incandescent and energy-saving lamps
Compact, low-profile ceiling installation design
Stable and cost-effective solution for lighting automation
| Item | Specification |
|---|---|
| Model | YW-P09 |
| Sensor Type | PIR (Passive Infrared) |
| Mounting | Ceiling mount |
| Detection Angle | 360° |
| Detection Distance | Max. 6 m (<24°C) |
| Power Supply | 110–130V AC / 220–240V AC |
| Rated Load | Max. 800W (incandescent) / 400W (energy-saving lamp) |
| Time Delay | 10 sec ±3 sec to 15 min ±2 min (adjustable) |
| Ambient Light Level | <3–2000 LUX (adjustable) |
| Operating Temperature | −20°C to +40°C |
| Application | Indoor lighting control |

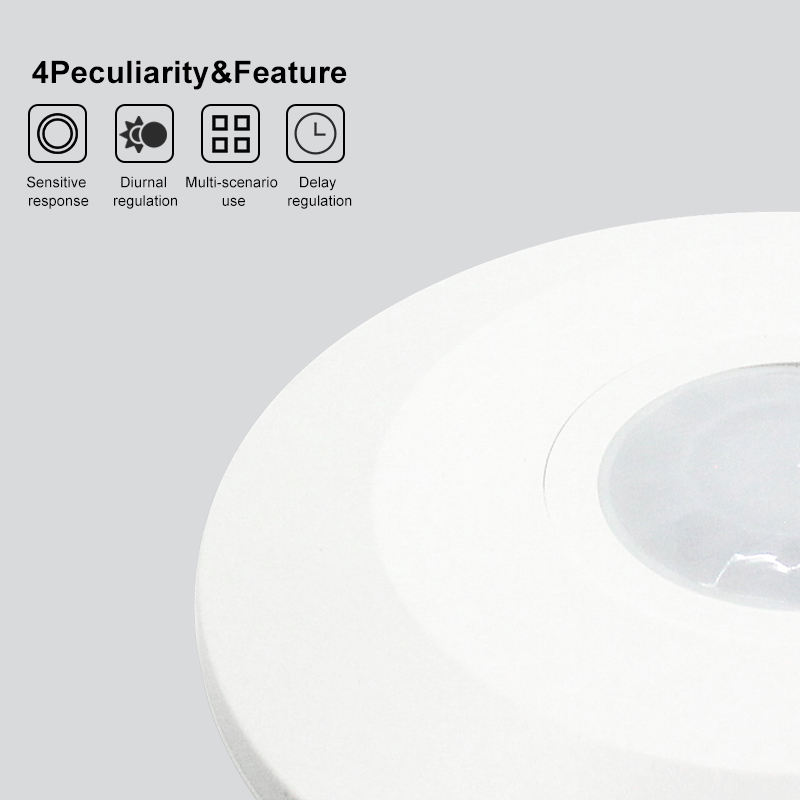

• High sensitivity PIR infrared detection
• 360° wide detection coverage
• Adjustable time delay and ambient light control
• Stable and reliable performance
• Suitable for indoor lighting automation
• Energy-saving and automatic switching

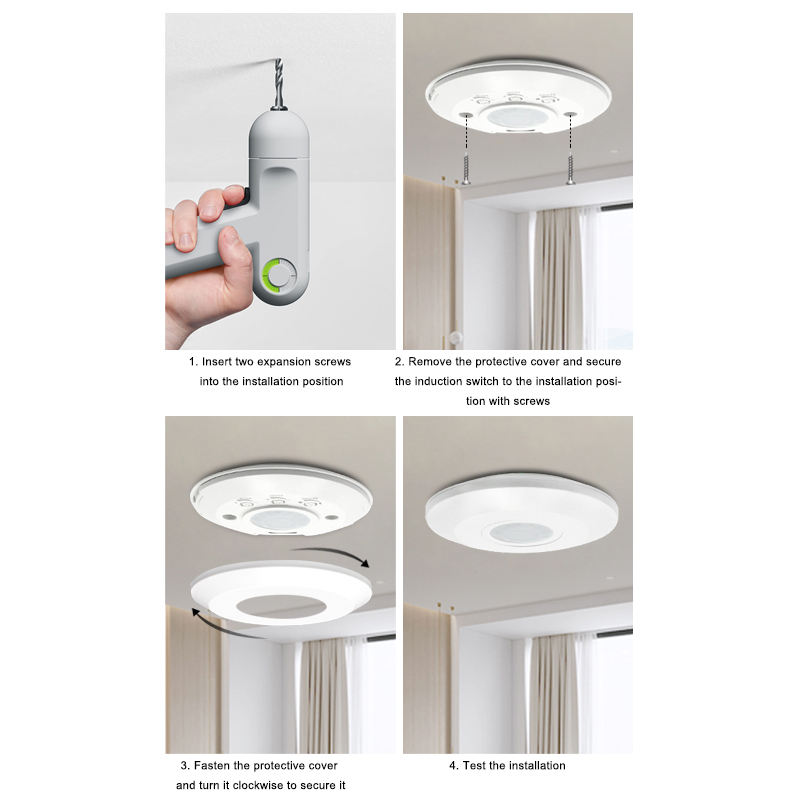

• Easy ceiling installation
• Long service life
