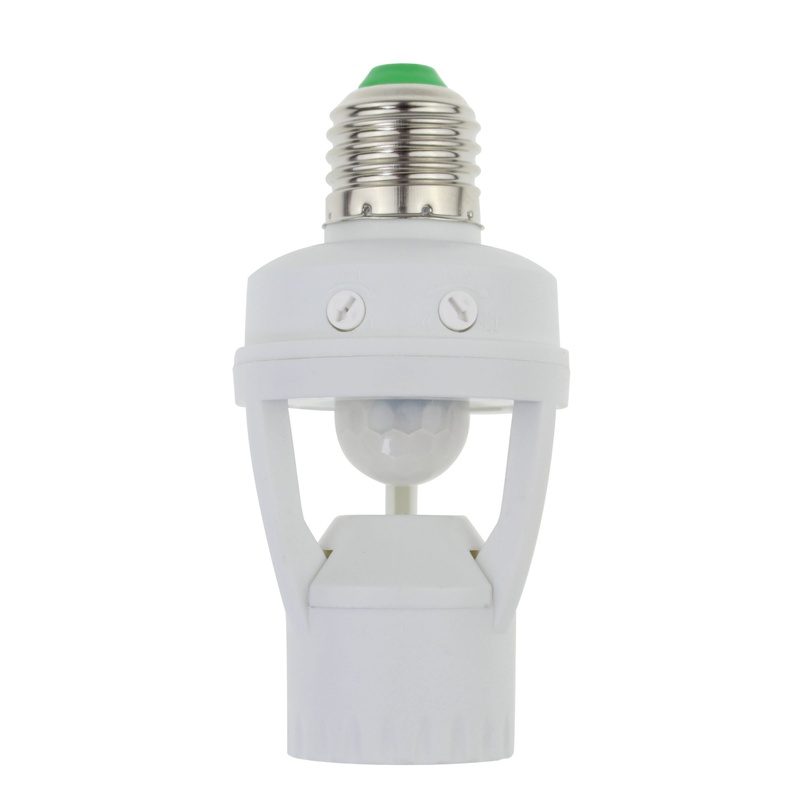

The YW-H01 is an E27 PIR sensor lamp holder designed to convert standard light bulbs into motion-activated lights.
It detects human movement automatically and switches the lamp ON or OFF, helping reduce energy consumption without changing existing fixtures.
With a compact design and wide detection angle, it is ideal for residential and commercial indoor lighting applications.
The YW-H01 PIR sensor holder is a practical and cost-effective solution for automatic lighting control.
By integrating a passive infrared sensor into a standard E27 lamp holder, it allows ordinary bulbs to function as motion-activated lights.

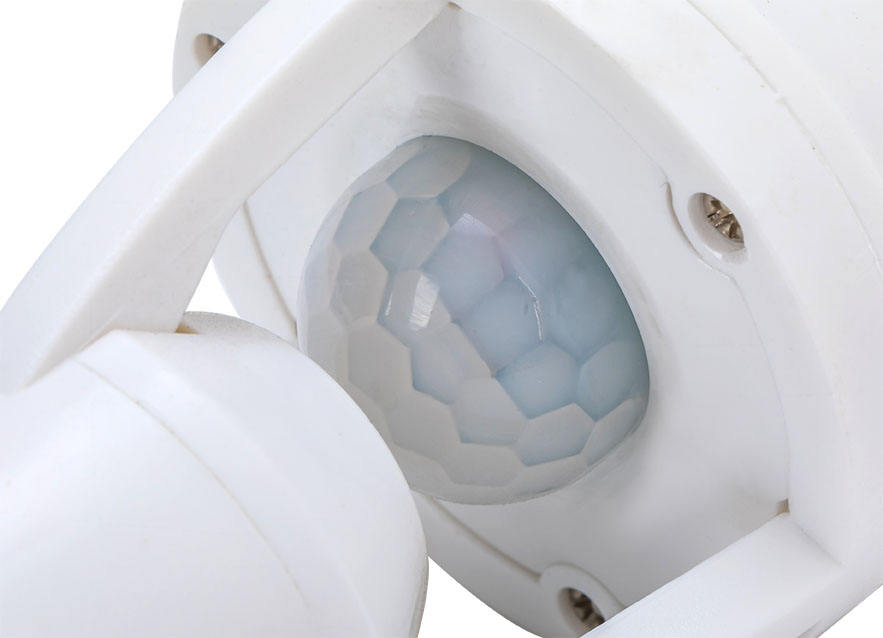

The sensor detects infrared radiation caused by human movement and activates the connected lamp within its detection range.
Once motion stops, the light automatically turns OFF after a preset delay time, improving energy efficiency and convenience.
This sensor holder is widely used in areas where hands-free lighting is preferred, such as stairways, corridors, storage rooms, and entrances.
PIR Sensor Lamp Holder
Model: YW-H01

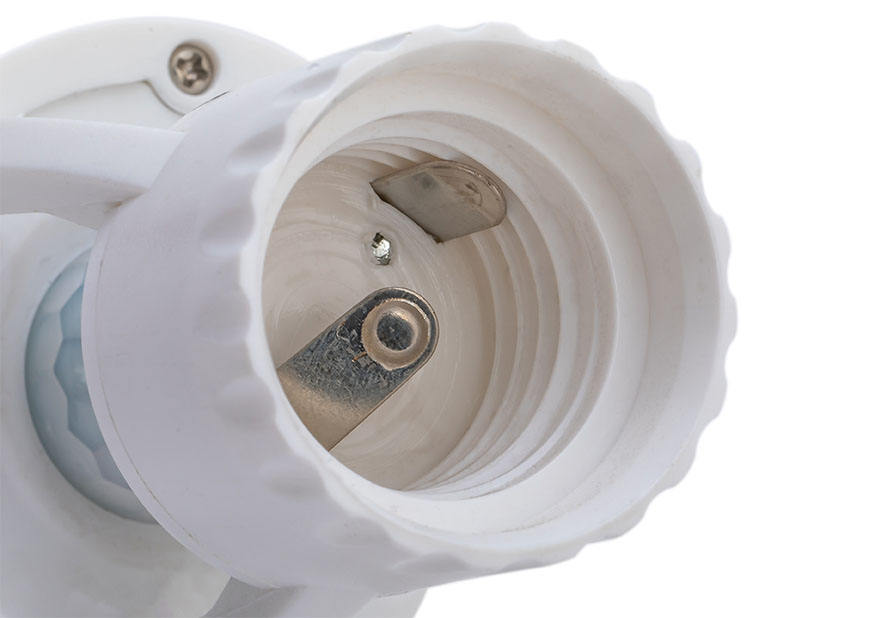

Lamp Base: E27
Power Source: 100–240V AC, 50/60Hz
Rated Load: Max. 60W (E27 bulb)
Detection Angle: 360°
Detection Distance: 6 m max. (at <24°C)
Time Delay: 10 sec – 5 min
Ambient Light Sensitivity: 3–2000 LUX (adjustable)
Installation: Screw-in lamp holder
Stairways and corridors
Storage rooms and basements
Residential indoor lighting
Garages and utility rooms
Energy-saving automatic lighting systems
• High sensitivity PIR infrared detection
• 360° wide detection coverage

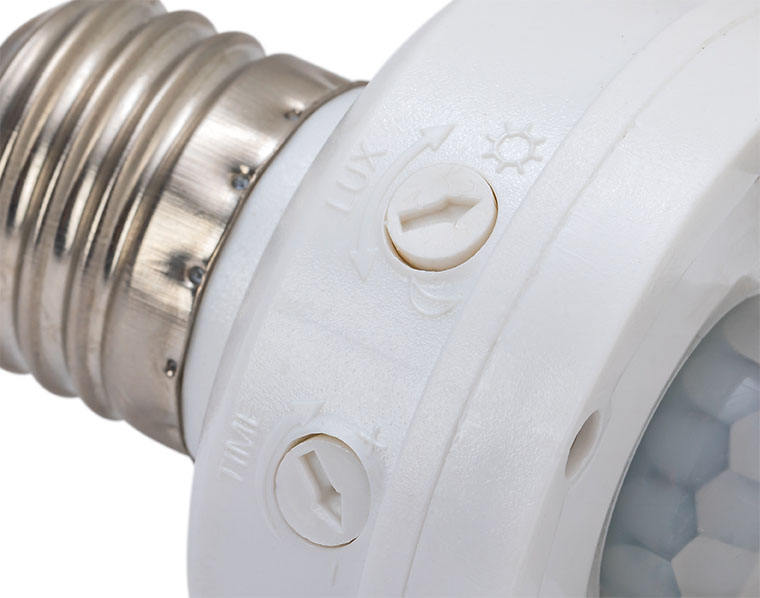

• Adjustable time delay and ambient light control
• Stable and reliable performance
• Suitable for indoor lighting automation
• Energy-saving and automatic switching
• Easy ceiling installation
• Long service life
