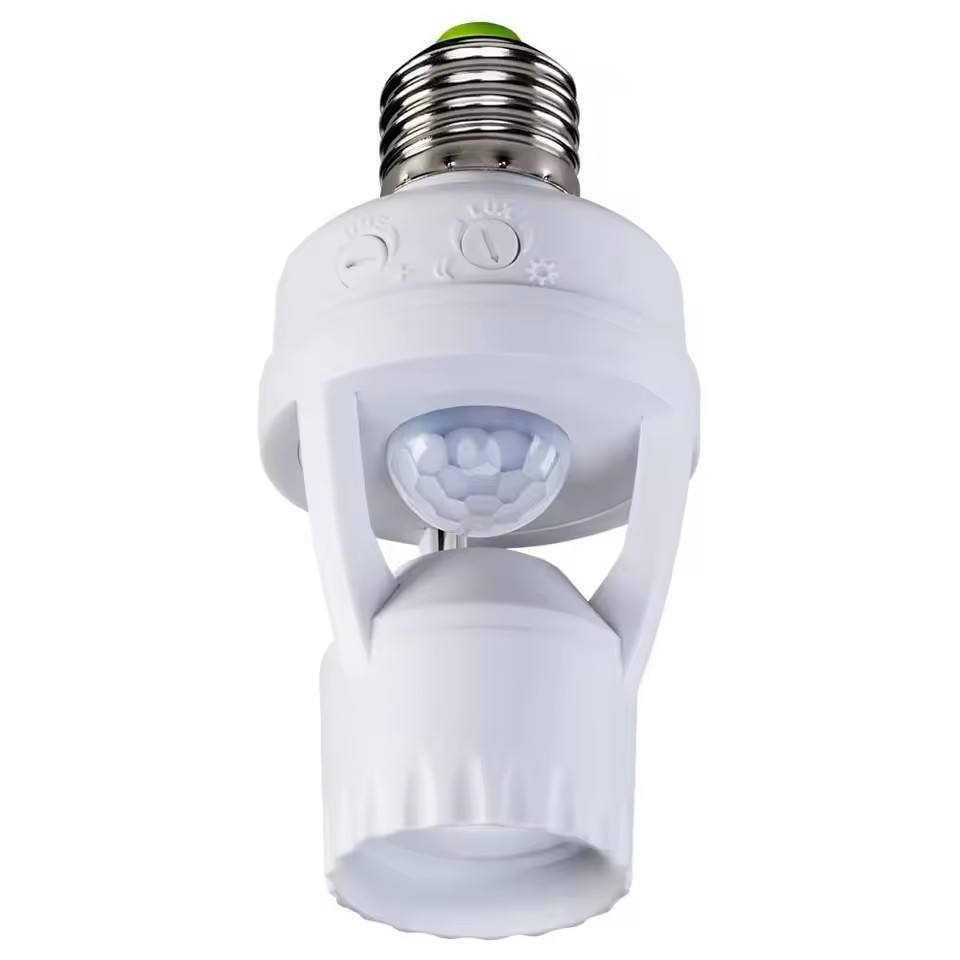

The YW-H02 is an E27 PIR sensor holder designed for automatic lighting control using standard light bulbs.
It activates the lamp when motion is detected and switches it off automatically after a preset delay, helping reduce unnecessary power consumption.
With a compact structure and full 360° detection coverage, it is ideal for indoor residential and commercial lighting upgrades.

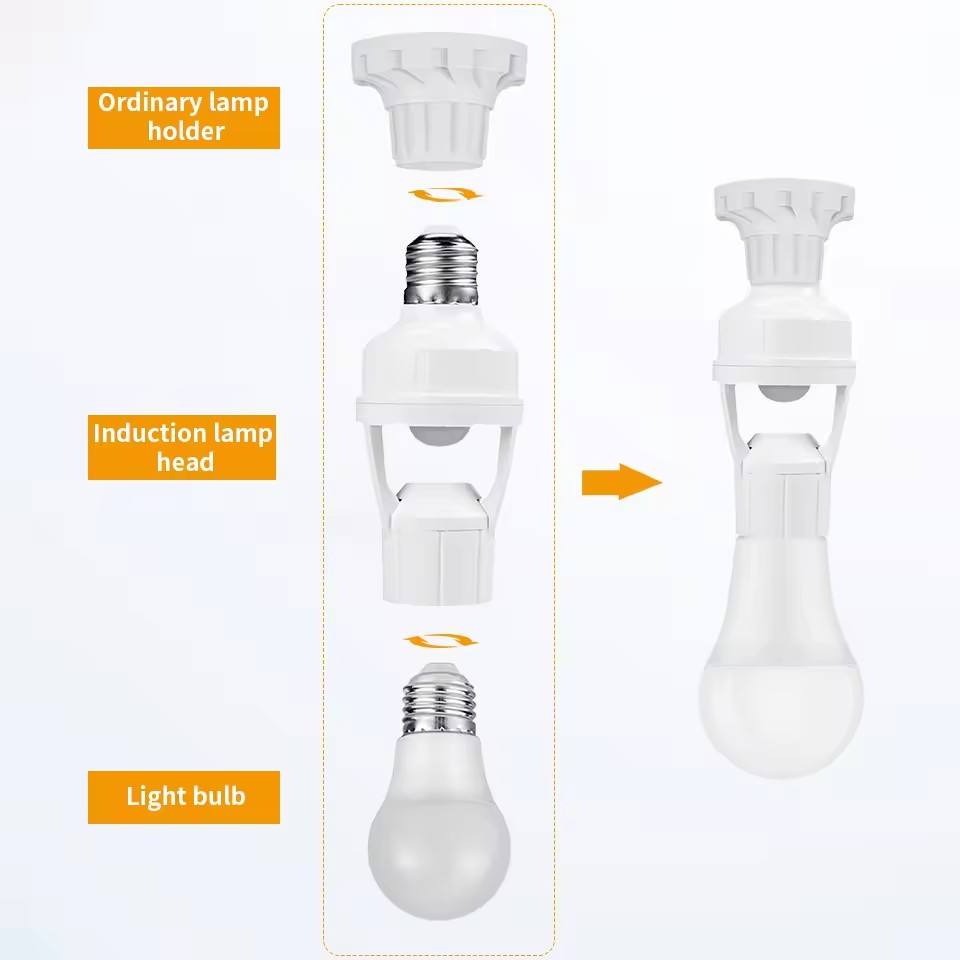

The YW-H02 PIR sensor lamp holder allows ordinary E27 bulbs to operate as motion-controlled lights without replacing existing fixtures.
It integrates a passive infrared sensor that responds to human movement within the detection area.
Once motion is detected, the connected lamp turns ON automatically.
After movement stops, the light switches OFF based on the selected delay time, providing both convenience and energy efficiency.
This model is especially suitable for indoor areas where automatic lighting improves safety and usability while keeping installation simple.

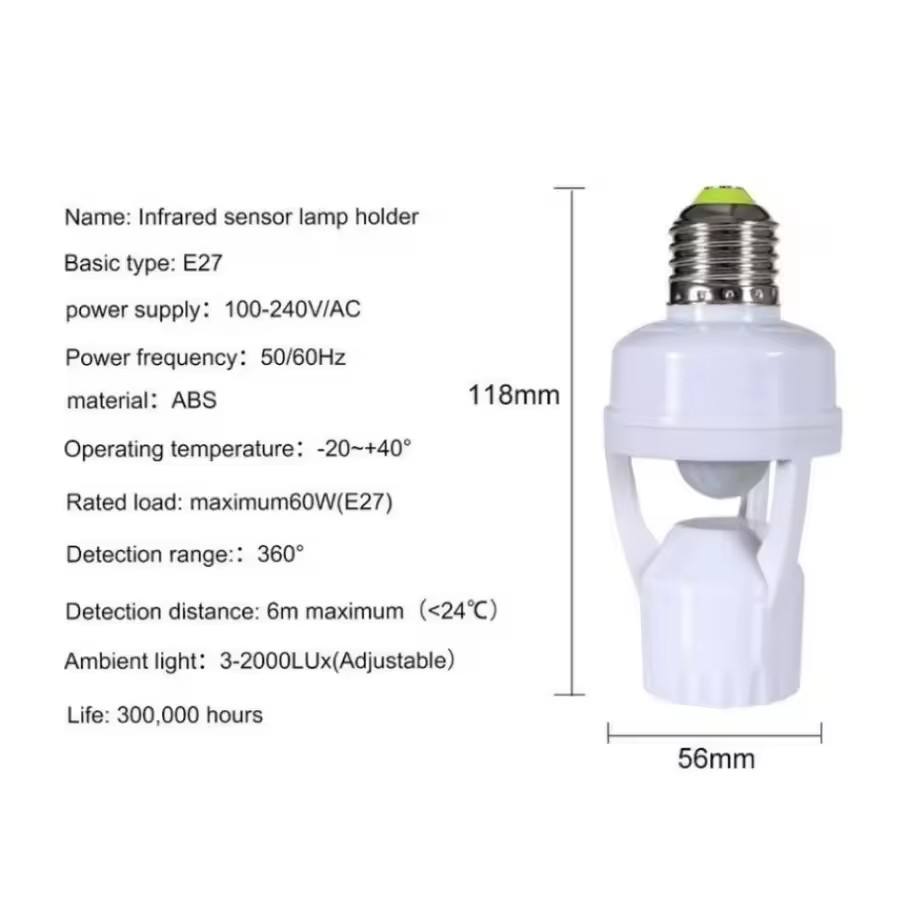

PIR Sensor Lamp Holder
Model: YW-H02

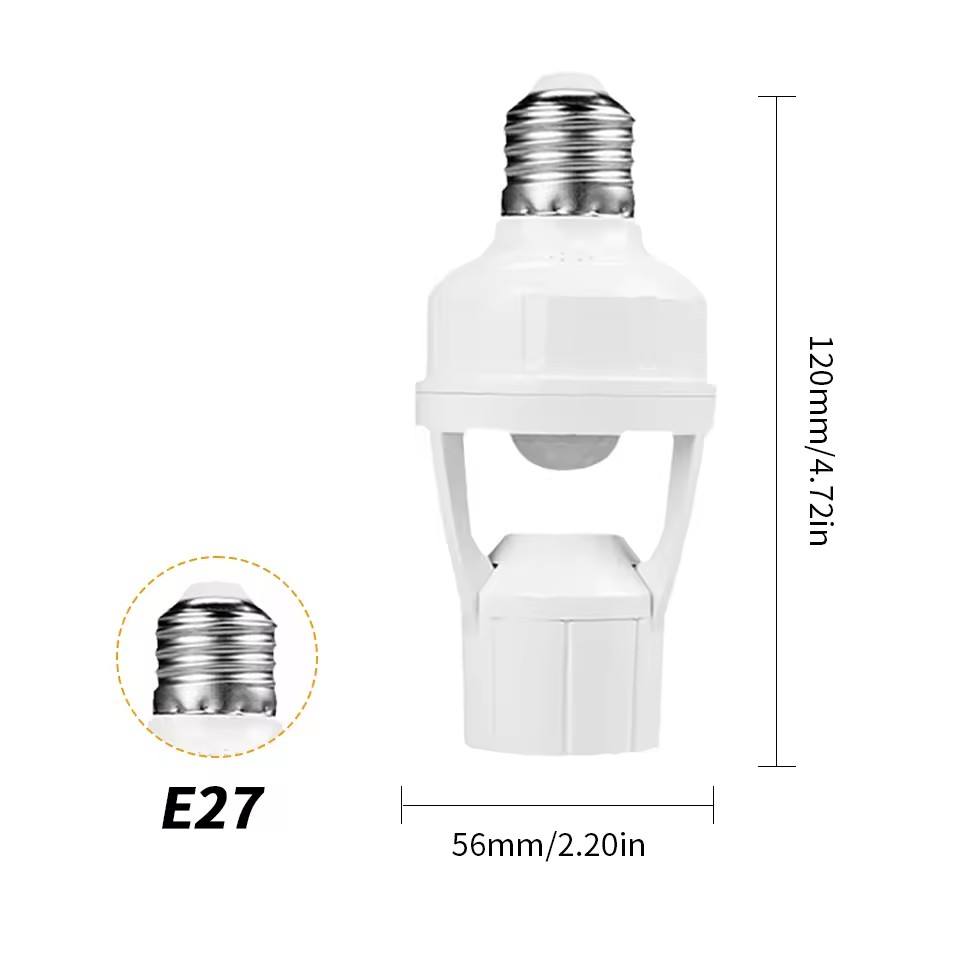

Lamp Base: E27
Power Source: 100–240V AC, 50/60Hz

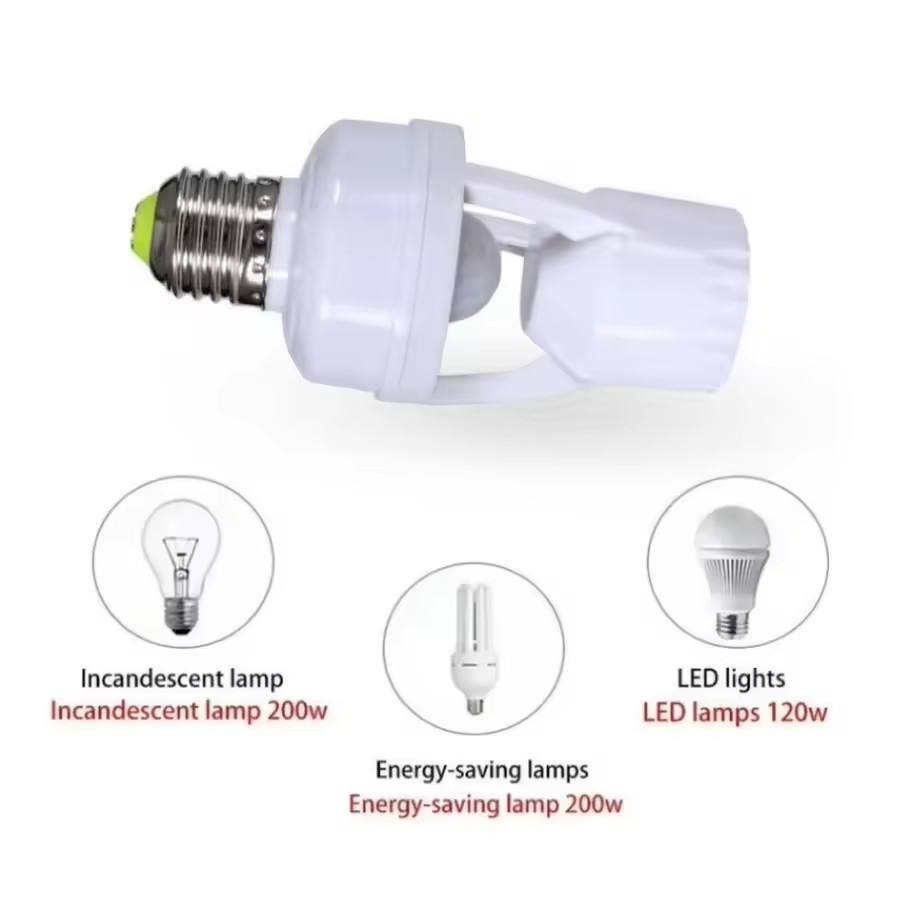

Rated Load: Max. 60W (E27 bulb)
Detection Angle: 360°
Detection Distance: Max. 6 m (at <24°C)
Time Delay: 10 sec – 5 min
Ambient Light Sensitivity: 3–2000 LUX (adjustable)
Installation: Screw-in lamp holder
Stairways and hallways
Indoor corridors and passages
Storage rooms and basements
Residential automatic lighting
Energy-saving retrofit lighting projects
• High sensitivity PIR infrared detection
• 360° wide detection coverage
• Adjustable time delay and ambient light control
• Stable and reliable performance
• Suitable for indoor lighting automation
• Energy-saving and automatic switching
• Easy ceiling installation
• Long service life
