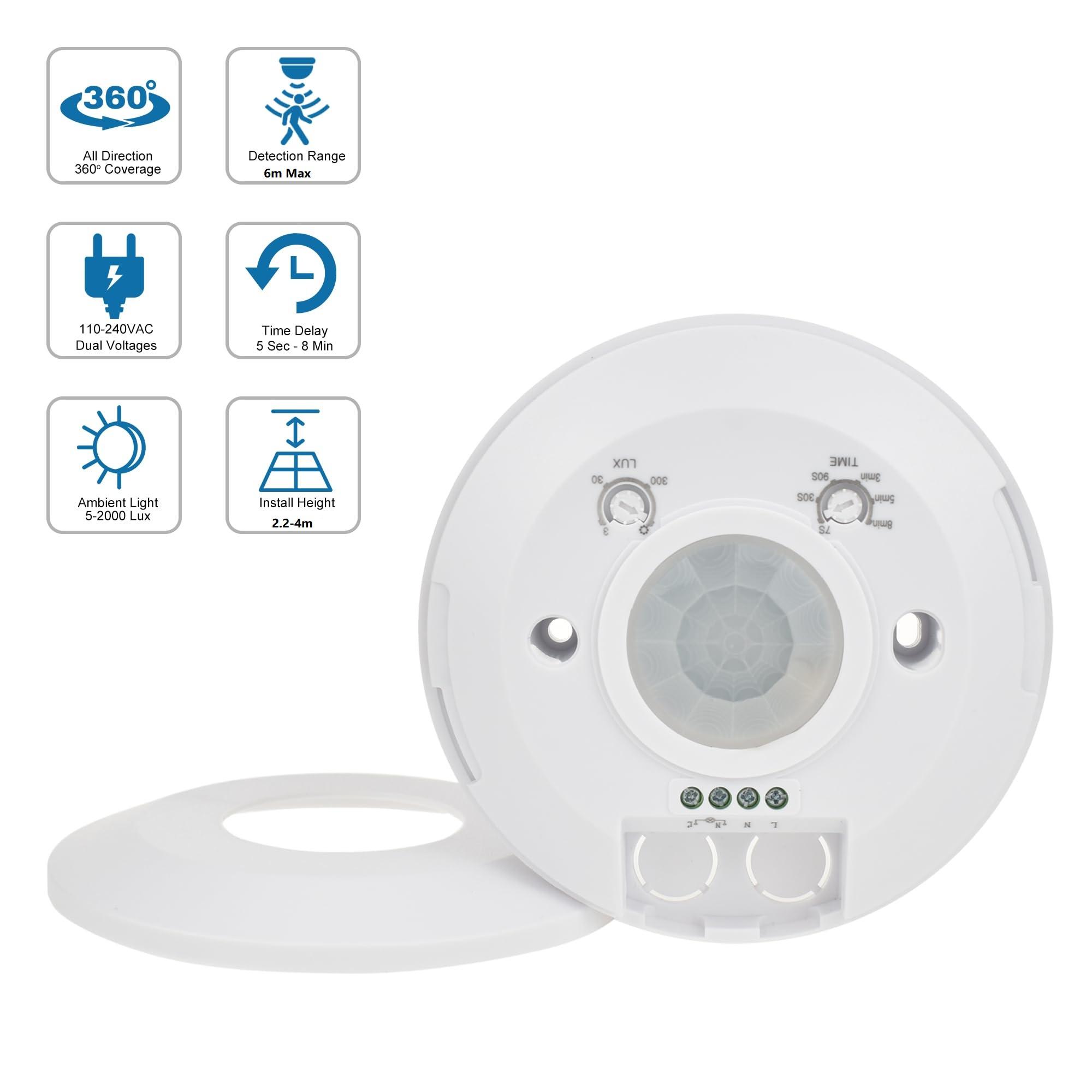

YW08A Surface-Mounted PIR Motion Sensor – 360° Ceiling Infrared Detector
YW08A is a surface-mounted ceiling PIR motion sensor designed for professional lighting control applications.
It features 360° infrared detection and supports high load capacity up to 2000W, suitable for commercial and industrial lighting systems.
With adjustable time delay and ambient light sensitivity, the sensor ensures reliable motion detection while reducing unnecessary energy consumption.
Ideal for retrofit projects, YW08A allows quick ceiling installation without recessed mounting requirements.
OEM customization and bulk supply are available for B2B buyers.
Description
Characteristics
Description
Product Overview
The YW08A surface-mounted PIR motion sensor is engineered for ceiling installations where recessed mounting is not practical. Its compact and slim housing allows fast installation while maintaining a clean ceiling appearance.
Equipped with 360° infrared detection, YW08A reliably senses human movement and automatically switches connected lighting loads on or off. The sensor supports high-power loads up to 2000W, making it suitable for projects with multiple luminaires or high-wattage lighting systems.
Adjustable time delay and ambient light (LUX) threshold enable precise control according to site conditions, helping reduce unnecessary energy consumption. YW08A is widely used in commercial buildings, corridors, staircases, utility rooms, and retrofit lighting projects.
OEM logo printing, customized parameters, and bulk supply are available for professional buyers.
Technology Specification
Product Type: Surface-Mounted PIR Infrared Motion Sensor
Model: YW08A
Installation: Ceiling Surface Mount
Power Source: 220–240V AC / 100–130V AC, 50/60Hz
Rated Load:
Max. 2000W (220–240V AC)
1000W (100–130V AC)
1000W (220–240V AC)
500W (100–130V AC)
Detection Angle: 360°
Detection Distance: Up to 6m (at <24°C)
Time Delay: 10 sec ±3 sec ~ 7 min ±2 min (Adjustable)
Ambient Light Sensitivity: <3–2000 LUX (Adjustable)
Application:
Commercial ceiling lighting control
Retrofit lighting projects
Corridors & staircases
Utility rooms & public areas
Energy-saving indoor lighting systems
Characteristics
• High sensitivity PIR infrared detection
• 360° wide detection coverage
• Adjustable time delay and ambient light control
• Stable and reliable performance
• Suitable for indoor lighting automation
• Energy-saving and automatic switching
• Easy ceiling installation
• Long service life
