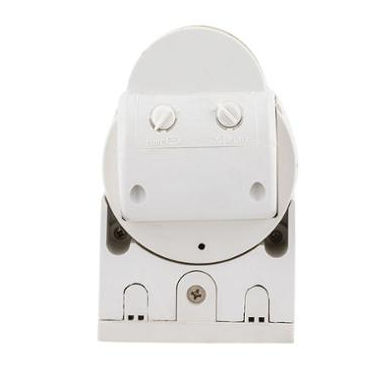

YW16A PIR Infrared Motion Sensor – 180° Outdoor Wall Mount IP44
The YW16A is a compact wall-mounted PIR infrared motion sensor designed for outdoor lighting control and perimeter security.
With a 180° detection angle and adjustable sensing parameters, it provides reliable motion detection for entrances, walls, and pathways.
Its IP44-rated housing ensures stable performance in outdoor environments while helping reduce unnecessary power consumption.
Description
Characteristics
Description
Product Overview
The YW16A PIR infrared motion sensor is engineered for outdoor wall-mounted installations where directional detection and durability are required.
Its structured housing design allows for stable mounting on exterior walls while maintaining accurate motion sensing performance.Featuring a 180° detection range and a maximum detection distance of 12 meters, the sensor effectively detects human movement approaching from the front and sides.
Adjustable time delay and ambient light sensitivity allow the lighting system to operate only when motion is detected under preset lighting conditions.With an IP44 protection rating, the YW16A is suitable for outdoor residential, commercial, and light industrial applications.
OEM & ODM services are available for bulk orders, including customized branding, packaging, and electrical specifications.
Technology Specification
PIR Infrared Motion Sensor
Model: YW16A
Power Source: 220–240V AC / 100–130V AC, 50/60Hz
Rated Load:
Max. 1200W (220–240V AC)
800W (100–130V AC)
300W (220–240V AC)
200W (100–130V AC)
Detection Angle: 180°
Detection Distance: Max. 12 m (at <24°C)
Time Delay: 8 sec ±3 sec ~ 10 min ±2 min (adjustable)
Ambient Light Sensitivity: <3–2000 LUX (adjustable)
Installation: Wall mount
Protection Rating: IP44
Application:
Outdoor wall lighting automation
Building entrances and exits
Pathways and perimeter walls
Residential and commercial security lighting
Energy-saving outdoor lighting systems
Characteristics
• High sensitivity PIR infrared detection
• 360° wide detection coverage
• Adjustable time delay and ambient light control
• Stable and reliable performance
• Suitable for indoor lighting automation
• Energy-saving and automatic switching
• Easy ceiling installation
• Long service life
