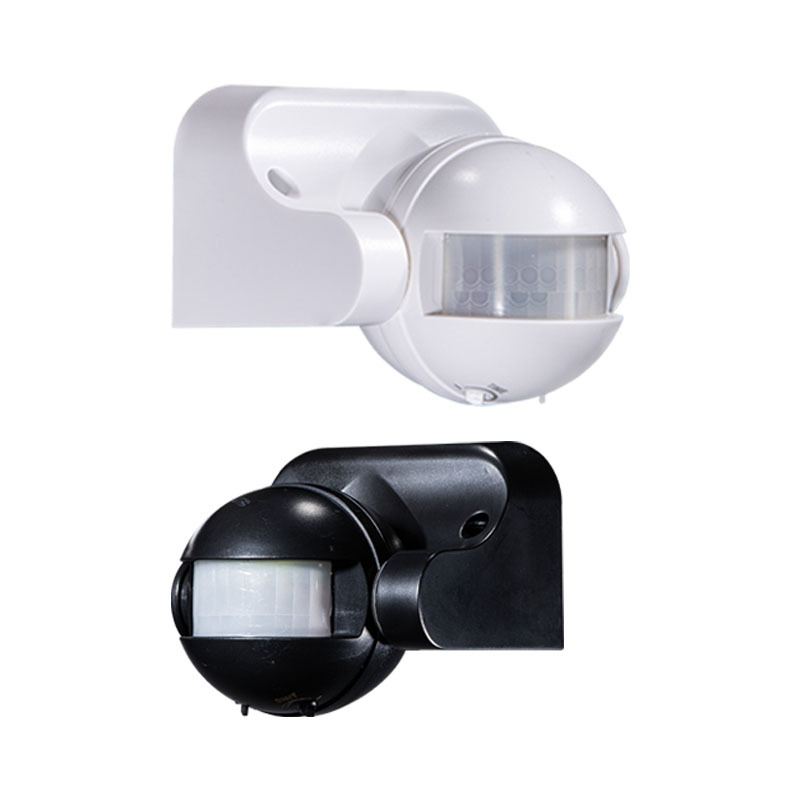

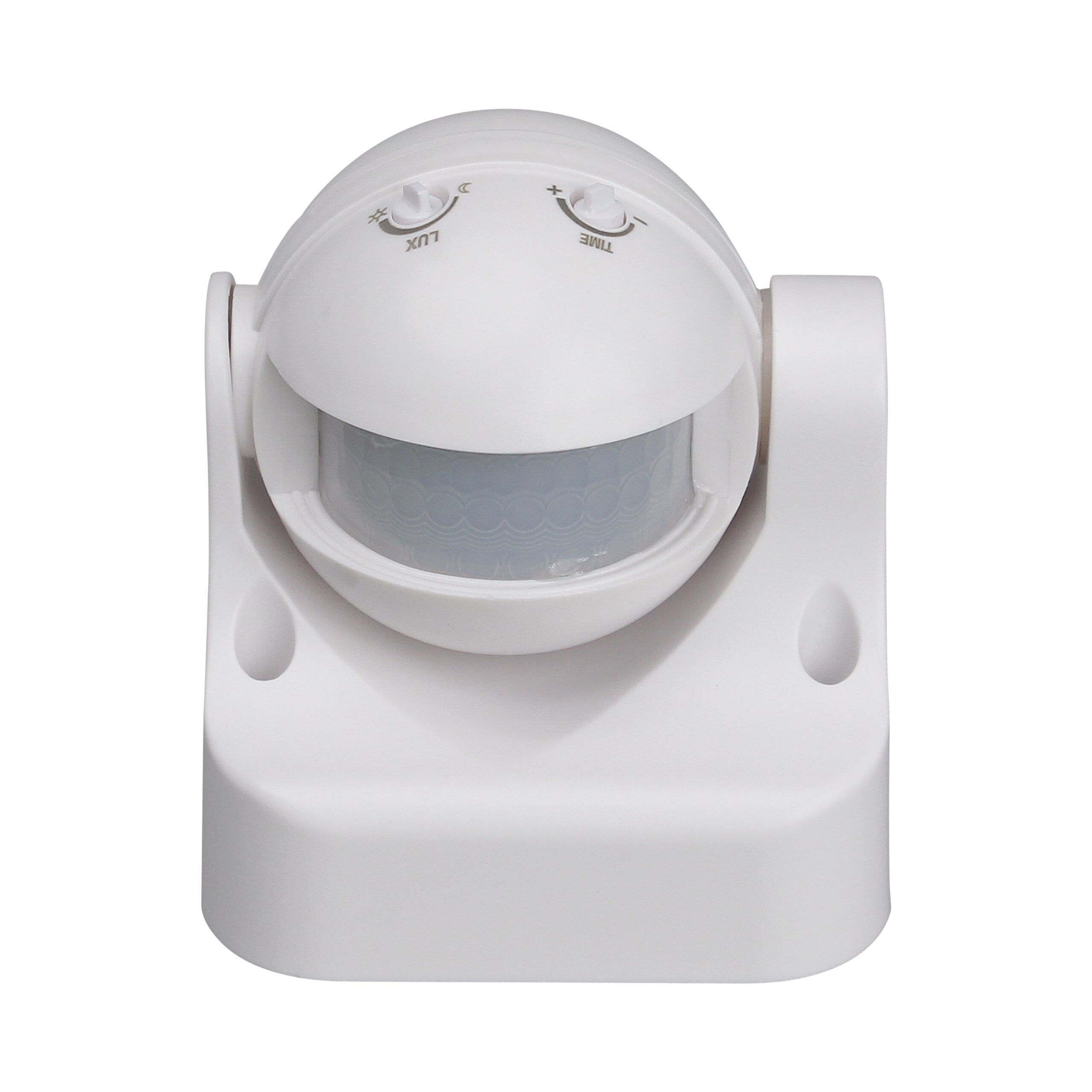

YW18 Wall Mount PIR Infrared Motion Sensor | IP44 Outdoor
The YW18 is a compact wall-mounted PIR infrared motion sensor designed for outdoor lighting control and security applications.
Featuring a 180° detection angle and stable infrared sensing, it ensures accurate motion detection around entrances and pathways.
With IP44 protection and adjustable time delay and light sensitivity, YW18 delivers reliable performance in residential and commercial outdoor environments.
Description
Characteristics
Description
Product Overview
YW18 PIR Infrared Motion Sensor is engineered for outdoor installations where compact size and dependable detection are required.
Its wall-mounted structure allows focused coverage for entrances, walkways, and access points, minimizing false triggers while maintaining sensitivity.
The sensor supports flexible configuration through adjustable time delay and ambient light threshold, helping reduce unnecessary energy consumption.
YW18 is suitable for OEM & ODM customization, including branding, housing color, and packaging, supporting project-based and bulk procurement.
Technology Specification
PIR Infrared Motion Sensor
Model: YW18
Power Source: 220–240V AC / 100–130V AC, 50/60Hz
Rated Load:
Max. 1200W (220–240V AC)
800W (100–130V AC)
300W (220–240V AC)
200W (100–130V AC)
Detection Angle: 180°
Detection Distance: Max. 12 m (at <24°C)
Time Delay: 8 sec ±3 sec ~ 8 min ±2 min (adjustable)
Ambient Light Sensitivity: <3 LUX – daylight (adjustable)
Installation: Wall mount
Protection Rating: IP44
Application
Outdoor entrance and exit lighting
Residential perimeter and wall lighting
Walkways and access paths
Security lighting for small commercial buildings
Energy-saving outdoor lighting systems
Characteristics
• High sensitivity PIR infrared detection
• 360° wide detection coverage
• Adjustable time delay and ambient light control
• Stable and reliable performance
• Suitable for indoor lighting automation
• Energy-saving and automatic switching
• Easy ceiling installation
• Long service life
