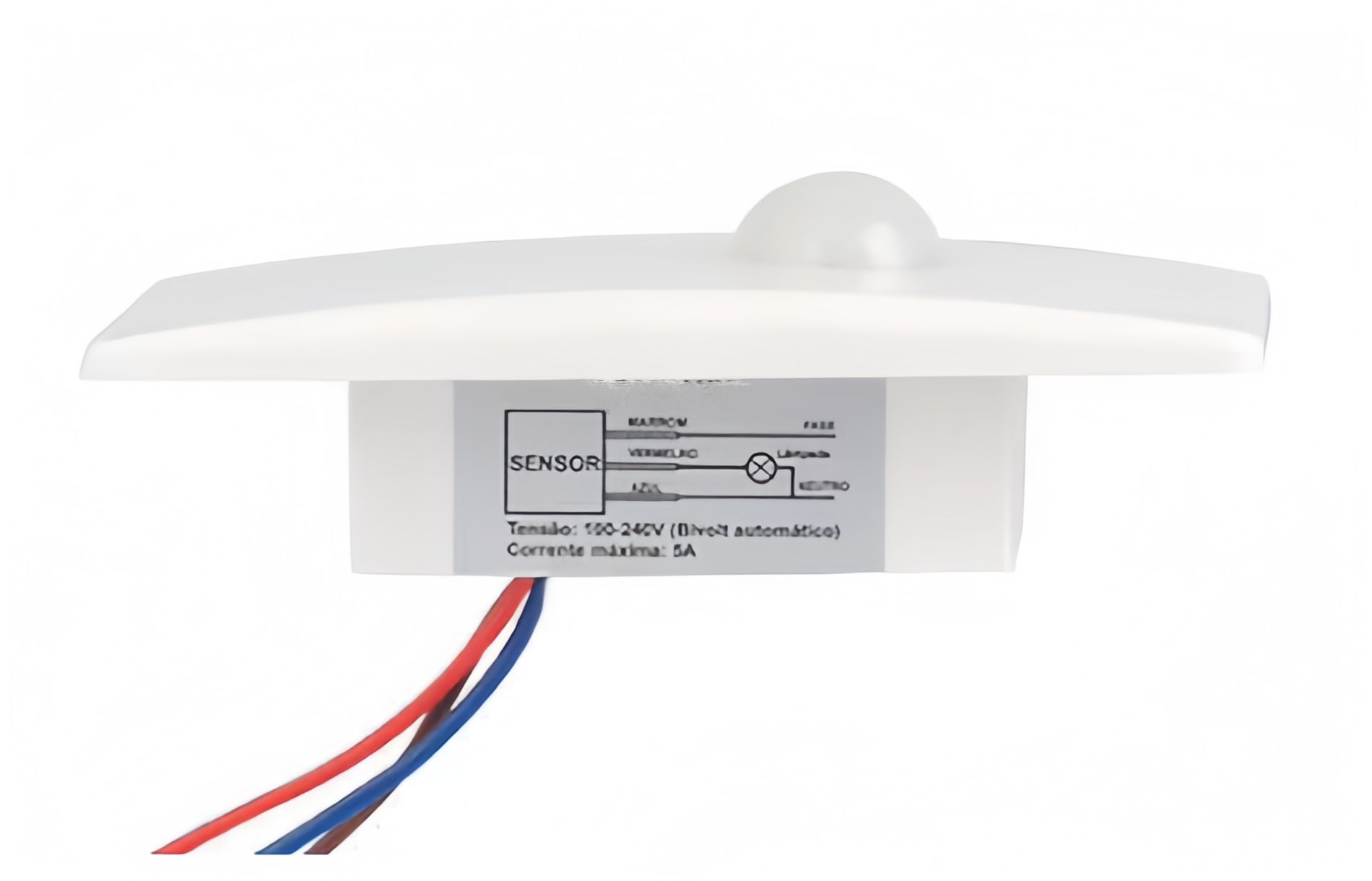

YW26A PIR Infrared Motion Sensor Switch – 120° Wall Mounted
The YW26A is a compact wall-mounted PIR motion sensor switch for indoor lighting control.
It offers selectable time delay and ambient light sensitivity options.
An ideal solution for energy-saving lighting automation in residential and commercial spaces
Description
Characteristics
Description
Product Overview
The YW26A PIR Infrared Motion Sensor Switch is designed for indoor wall installations requiring simple and reliable motion-based lighting control.
Using passive infrared technology, the sensor detects human movement within a 120° detection angle and automatically switches connected lighting loads.
Selectable time delay and ambient light settings allow users to customize operation based on different room requirements.
Its slim wall-switch design makes YW26A suitable for modern interiors where clean appearance and functional automation are equally important.
Technology Specification
PIR Infrared Motion Sensor Switch
Model: YW26A
Power Source: 100–240V AC, 50/60Hz
Rated Load:
Max. 1200W (220–240V AC)
800W (100–130V AC)
300W (220–240V AC)
200W (100–130V AC)
Detection Angle: 120°
Detection Distance: Max. 9 m (at < 24°C)
Time Delay: 5 s / 1 min / 5 min / 8 min (selectable)
Ambient Light Sensitivity: 10 LUX / 2000 LUX (selectable)

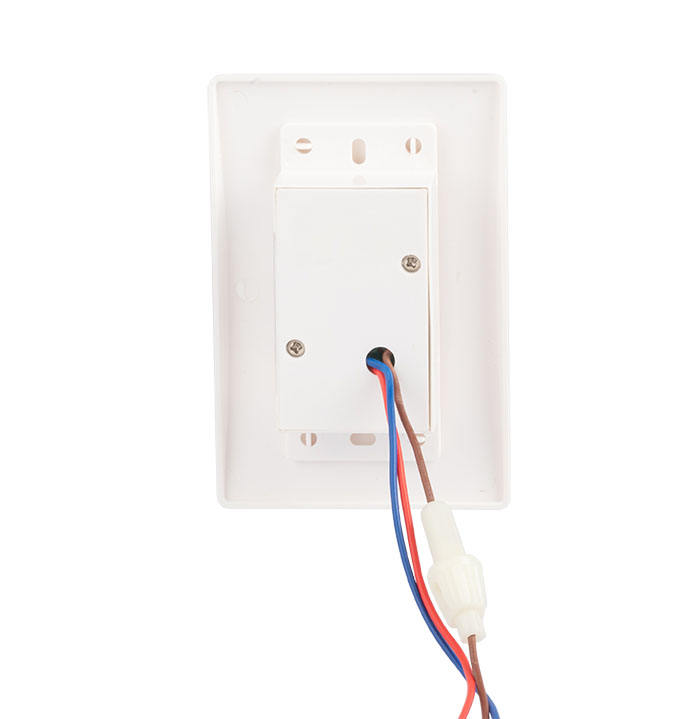

Installation: Wall mount
Application Environment: Indoor use
Application
Indoor lighting automation
Residential rooms and apartments
Corridors and hallways
Offices and commercial interiors
Energy-saving lighting control systems
Characteristics
• High sensitivity PIR infrared detection
• 360° wide detection coverage
• Adjustable time delay and ambient light control
• Stable and reliable performance
• Suitable for indoor lighting automation
• Energy-saving and automatic switching
• Easy ceiling installation
• Long service life
