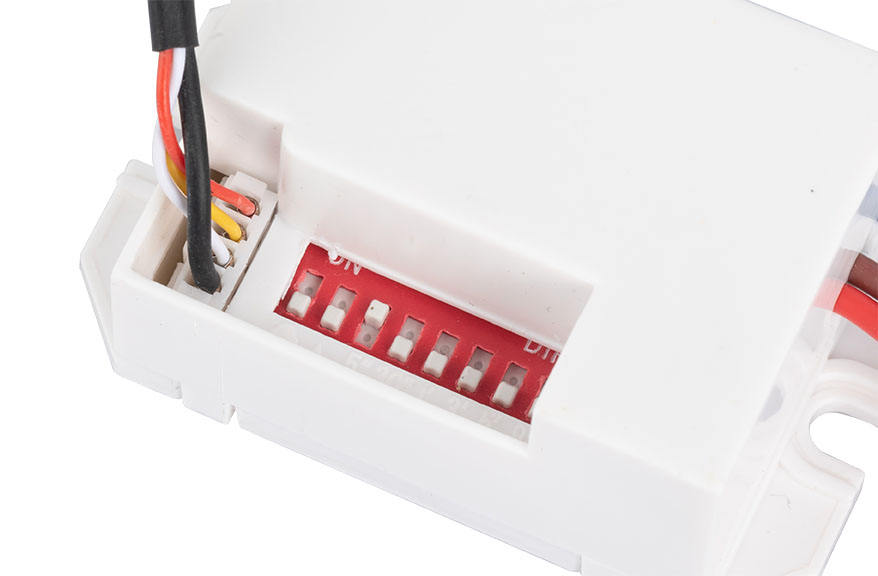

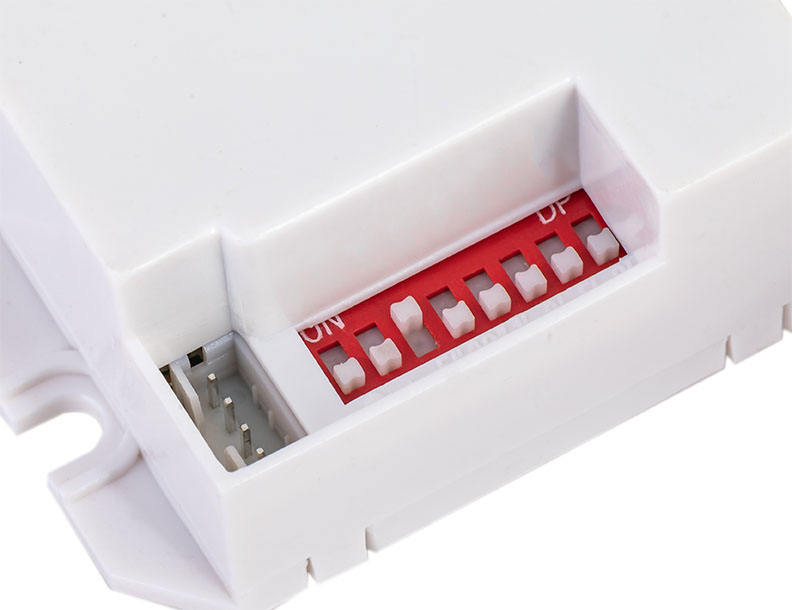

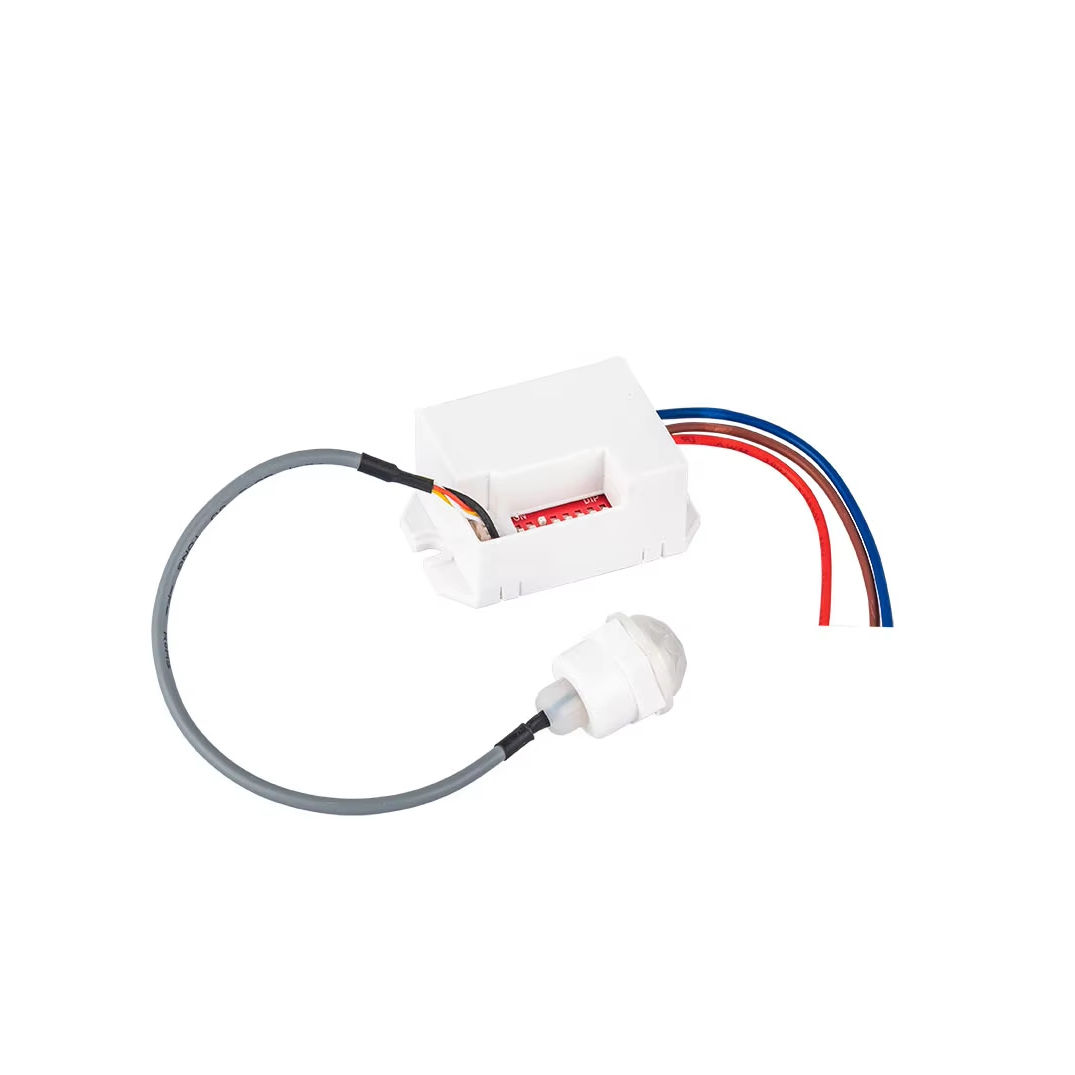

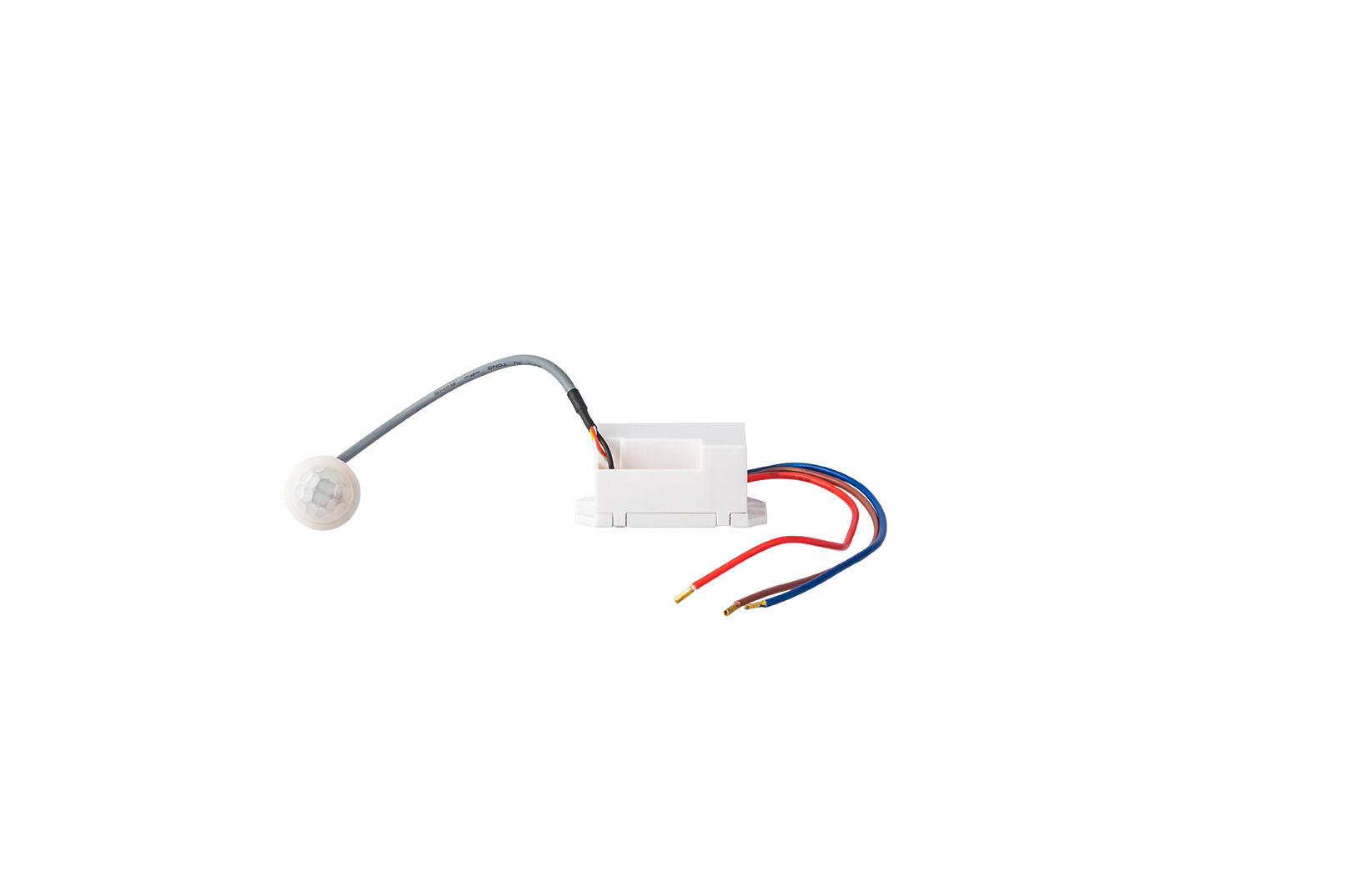

YW36 Mini PIR Infrared Motion Sensor Module for Lighting Control
The YW36 is a compact PIR infrared motion sensor module designed for embedded installations.
It provides precise motion detection with adjustable time delay and ambient light control.
Ideal for smart lighting products, control boxes, and energy-saving LED applications.
Description
Characteristics
Description
Product Overview
The YW36 PIR Infrared Motion Sensor Module is designed for applications where space-saving and flexible integration are required.
With its mini housing and wired connection, YW36 can be easily integrated into lighting fixtures, junction boxes, and smart control systems.
The 100° detection angle allows focused motion sensing, reducing false triggers in confined or directional lighting environments.
Its adjustable time delay and light sensitivity make it suitable for customized lighting behavior in both residential and commercial projects.
Technology Specification
PIR Infrared Motion Sensor Module
Model: YW36
Power Source: 220–240V AC / 100–130V AC, 50/60Hz
Rated Load:
Max. 800W (220–240V AC)
500W (100–130V AC)
200W (220–240V AC)
100W (100–130V AC)
Detection Angle: 100°
Detection Distance: Max. 8 m (at <24°C)
Time Delay: 5s / 30s / 1min / 3min / 5min / 8min (adjustable)
Ambient Light Sensitivity: <10–2000 LUX (adjustable)
Installation: Embedded / Built-in
Connection Type: Wired module
Application
Embedded LED lighting fixtures
Smart lighting control modules
Junction boxes and ceiling light housings
Energy-saving lighting systems
OEM / ODM lighting products
Characteristics
• High sensitivity PIR infrared detection
• 360° wide detection coverage
• Adjustable time delay and ambient light control
• Stable and reliable performance
• Suitable for indoor lighting automation
• Energy-saving and automatic switching
• Easy ceiling installation
• Long service life
