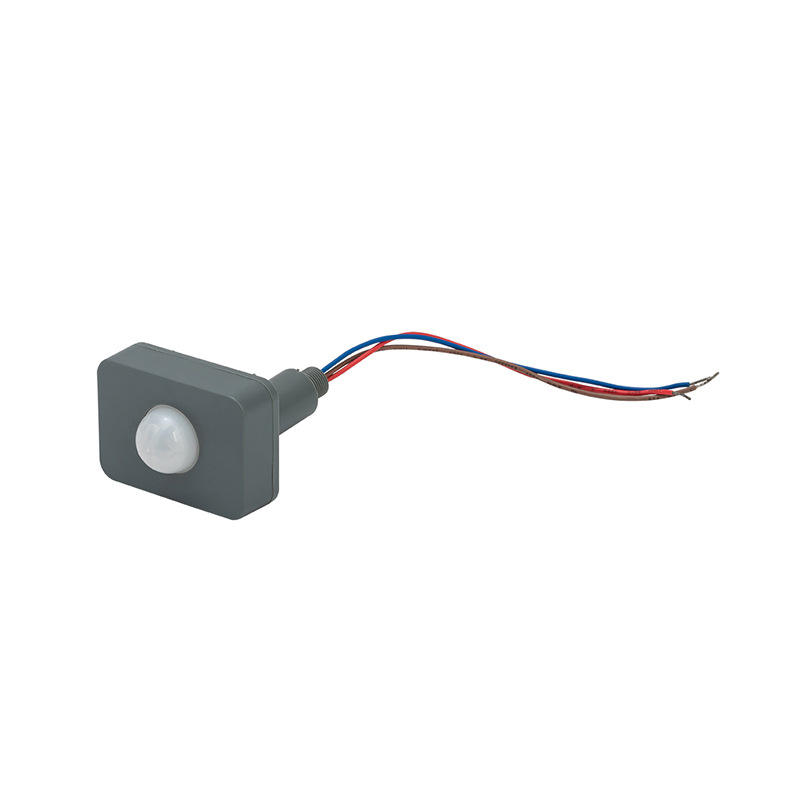

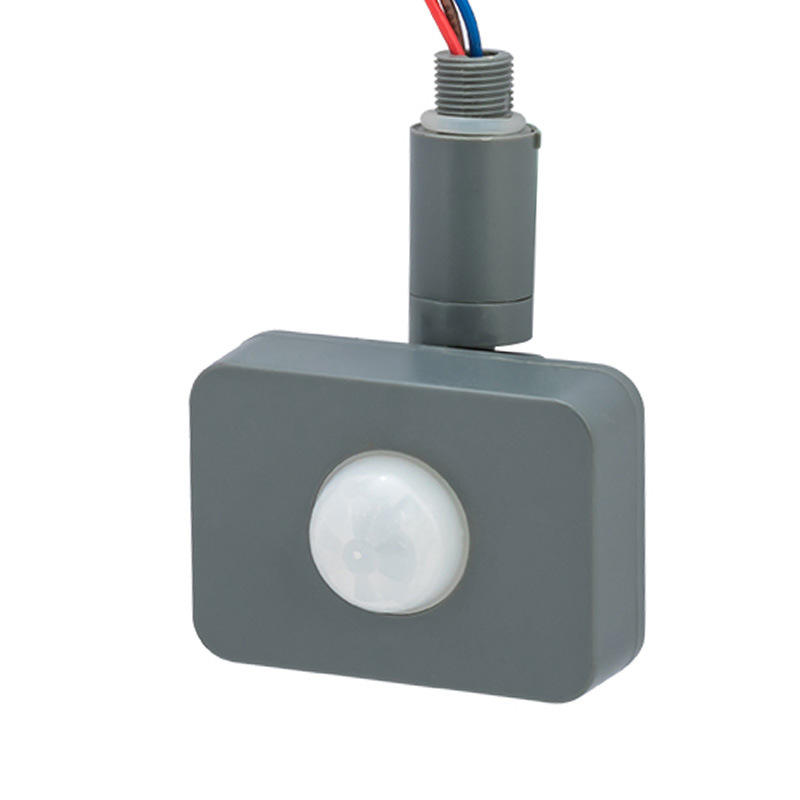

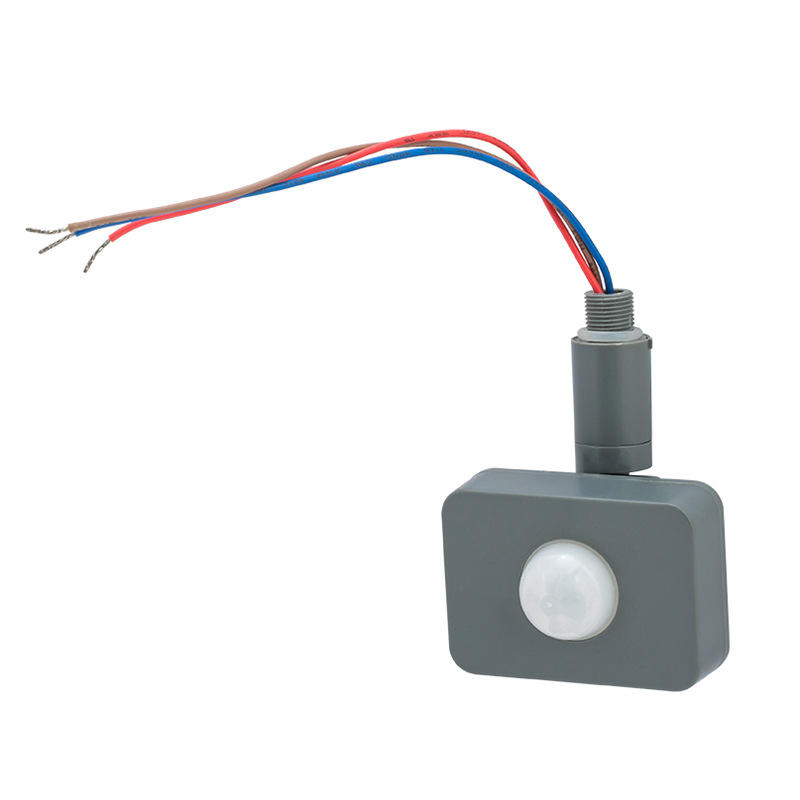

YW40 Mini PIR Infrared Motion Sensor | Compact Wall-Mounted Detector
A compact PIR infrared motion sensor designed for space-limited installations.
Features 120° detection coverage with adjustable time delay and ambient light sensitivity.
Ideal for automatic lighting control in residential and light commercial environments.
Description
Characteristics
Description
Product Overview
The YW40 Mini PIR Infrared Motion Sensor is designed for compact and discreet motion detection applications where installation space is limited. Its small housing and wall-mounted design make it suitable for modern interiors and concealed installations.
Equipped with a 120° detection angle and a 2–8 meter adjustable sensing range, the YW40 accurately detects human movement through passive infrared technology and triggers connected lighting loads automatically.
The sensor supports adjustable time delay and ambient light threshold, allowing precise control of lighting behavior based on real usage conditions. With IP44 protection, it can be reliably used in both indoor areas and sheltered outdoor environments.
OEM & ODM customization options are available for wiring, housing color, and branding.
Technology Specification
PIR Infrared Motion Sensor
Model: YW40
Power Source: 220–240V AC / 100–130V AC, 50/60Hz
Rated Load: Max. 100W
Detection Angle: 120°
Detection Distance: 2–8 m Max. (at <24°C)
Time Delay: 10 sec ±3 sec ~ 7 min ±2 min (adjustable)
Ambient Light Sensitivity: <3–2000 LUX (adjustable)
Installation: Wall mount
Protection Rating: IP44
Application
Automatic indoor lighting control
Corridor and hallway lighting
Staircases and passageways
Residential entrance lighting
Compact commercial lighting systems
Characteristics
• High sensitivity PIR infrared detection
• 360° wide detection coverage
• Adjustable time delay and ambient light control
• Stable and reliable performance
• Suitable for indoor lighting automation
• Energy-saving and automatic switching
• Easy ceiling installation
• Long service life
