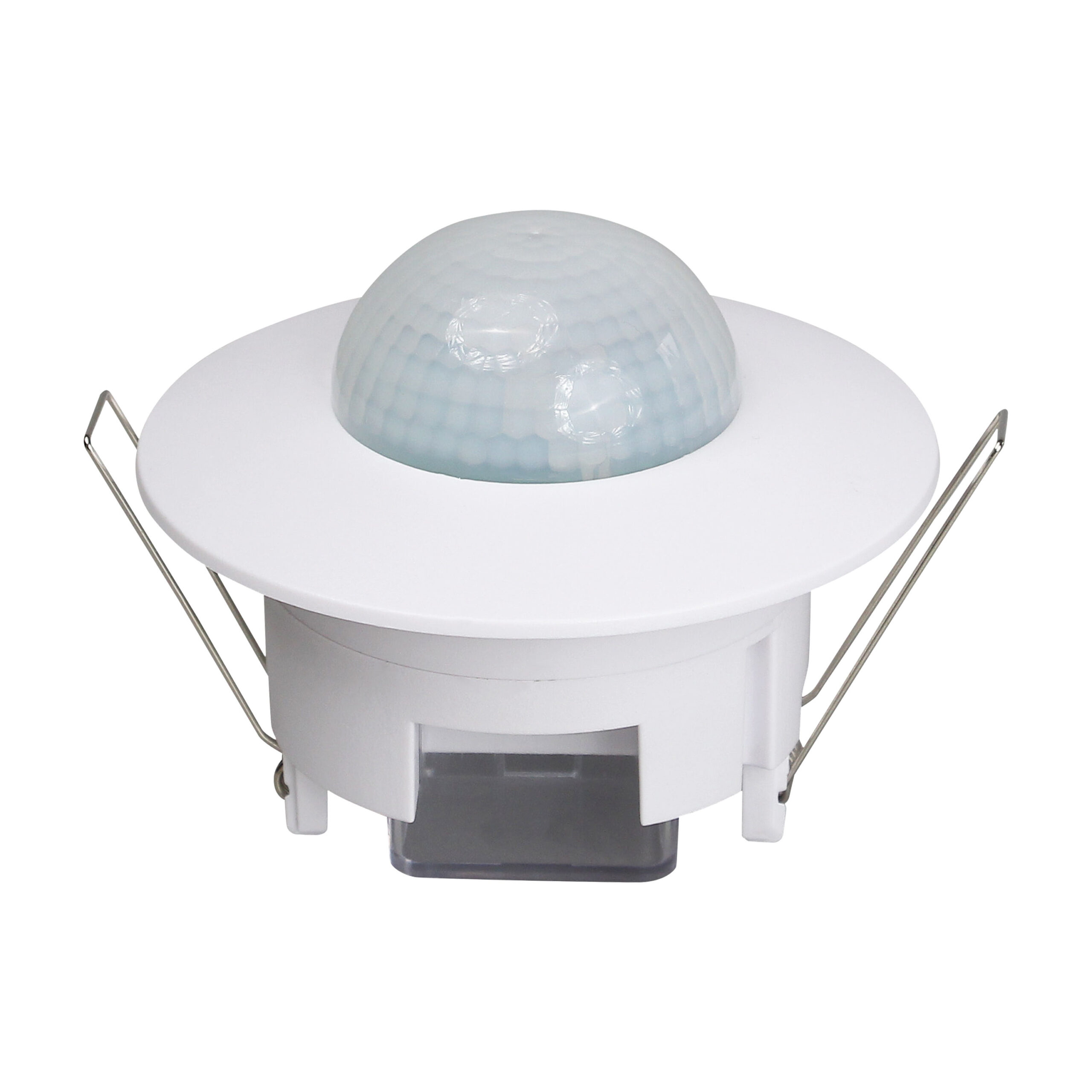

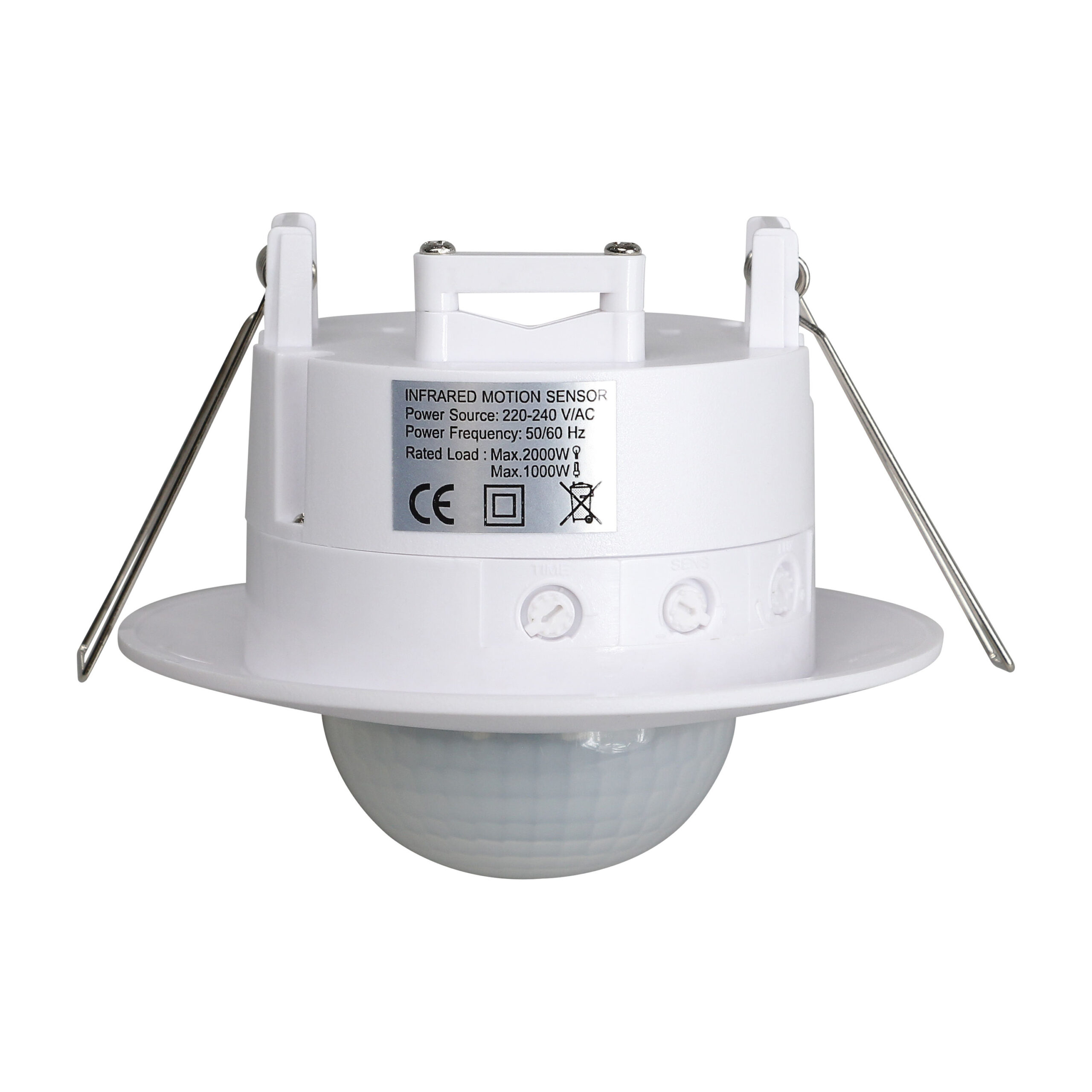

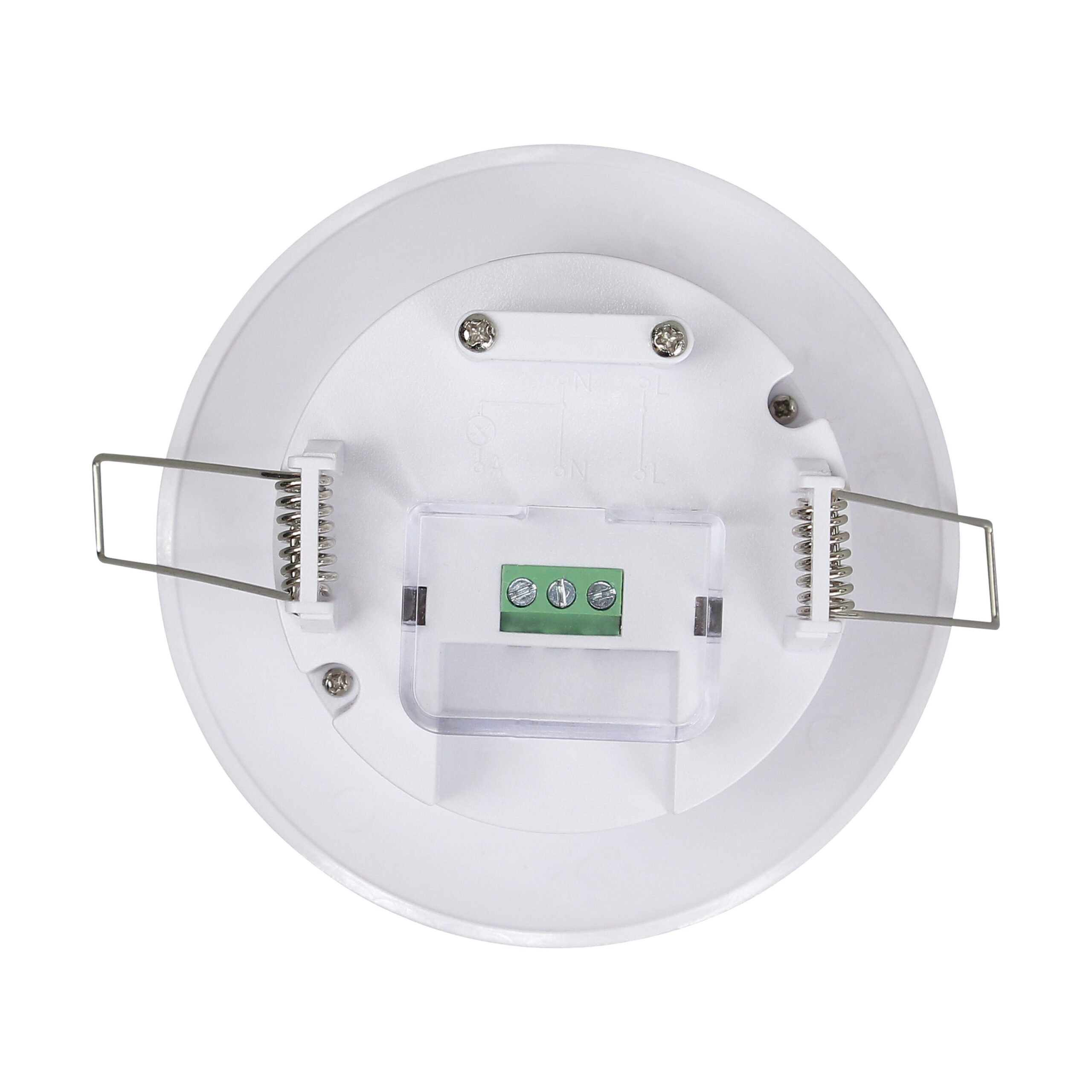

YW07 Recessed Ceiling PIR Motion Sensor – 360° Long-Range Infrared Detector (16m)
YW07 is a recessed ceiling PIR motion sensor featuring extended 16-meter detection distance and full 360° coverage.
Designed for large indoor spaces,
it supports adjustable time delay and ambient light sensitivity, delivering reliable motion-activated lighting control for commercial and professional projects.
Suitable for offices, warehouses, halls, and smart lighting systems.
OEM & ODM supported.
Description
Characteristics
Description
Product Overview
The YW07 recessed PIR motion sensor is developed for ceiling-mounted installations requiring long-range motion detection and stable performance. Compared with standard PIR models, YW07 offers an extended detection distance of up to 16 meters, making it ideal for larger indoor areas.
Using passive infrared technology, the sensor responds accurately to human movement and automatically controls connected lighting loads. With customizable time delay and LUX threshold, YW07 adapts easily to different lighting environments and energy-saving requirements.
Its recessed ceiling design keeps the appearance clean and unobtrusive, making it suitable for both modern commercial interiors and large residential projects. YW07 is commonly applied in open offices, corridors, warehouses, lobbies, and public buildings where wider detection coverage is required.
OEM branding, ODM development, and bulk supply are available.
Technology Specification
Recessed PIR Infrared Motion Sensor
Model: YW07
Installation: Ceiling Recessed Mount
Power Supply: 220–240V AC / 100–130V AC, 50/60Hz
Rated Load:
Max. 1200W (220–240V AC)
800W (100–130V AC)
300W (220–240V AC)
200W (100–130V AC)
Detection Angle: 360°
Detection Distance: Up to 16m (at <24°C)
Time Delay: 10 sec ±3 sec ~ 7 min ±2 min (Adjustable)
Ambient Light Sensitivity: <3–2000 LUX (Adjustable)
Application
Large office lighting automation
Warehouses & logistics centers
Public corridors & halls
Commercial buildings
Smart and energy-saving lighting systems
Characteristics
• High sensitivity PIR infrared detection
• 360° wide detection coverage
• Adjustable time delay and ambient light control
• Stable and reliable performance
• Suitable for indoor lighting automation
• Energy-saving and automatic switching
• Easy ceiling installation
• Long service life
